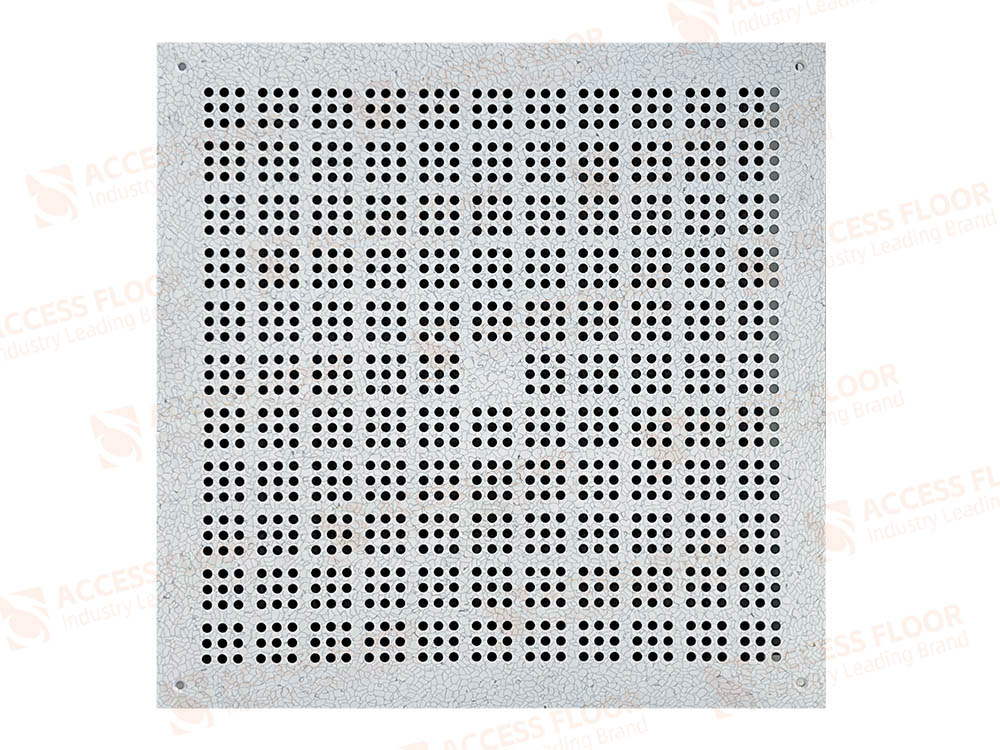

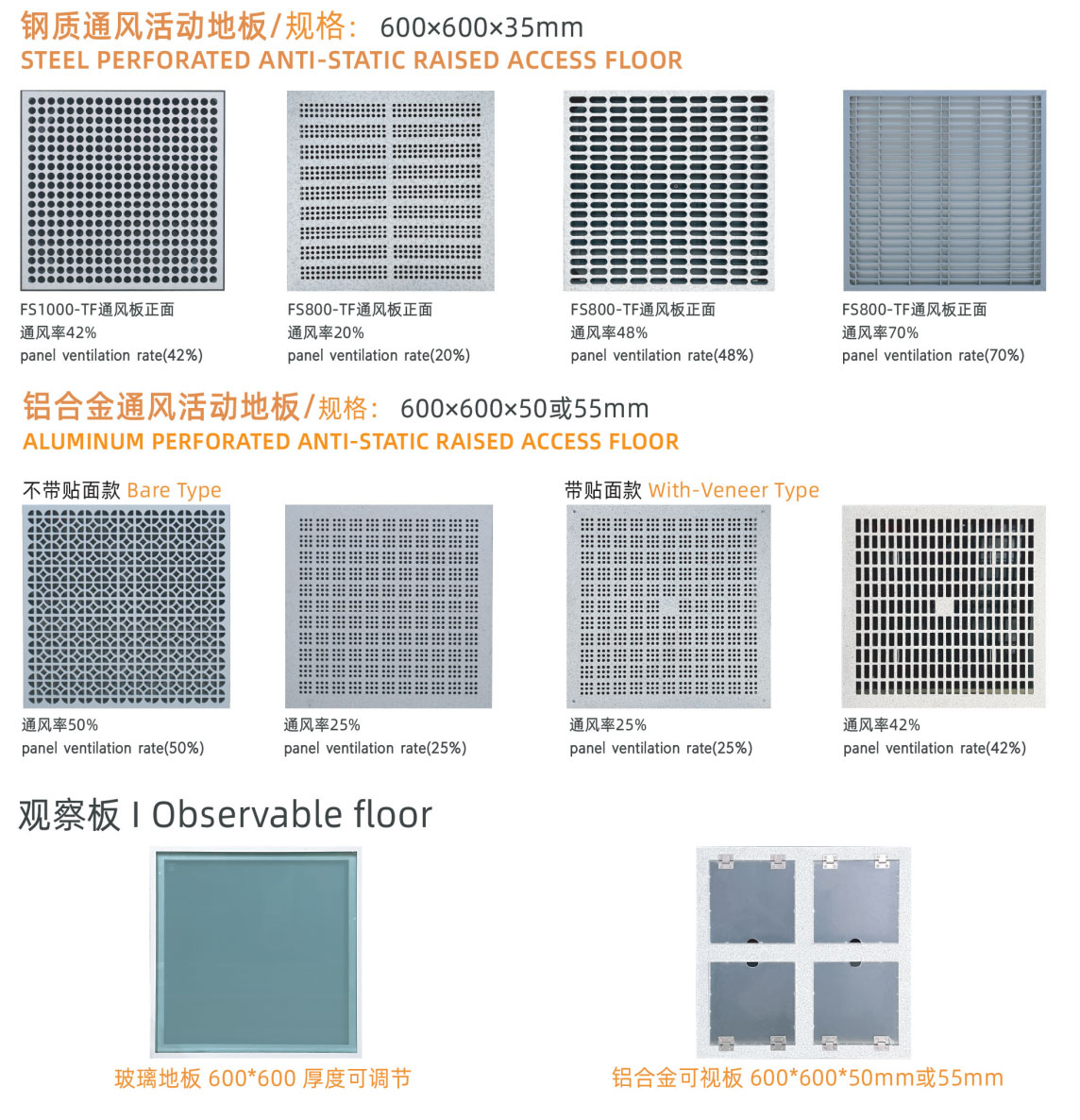

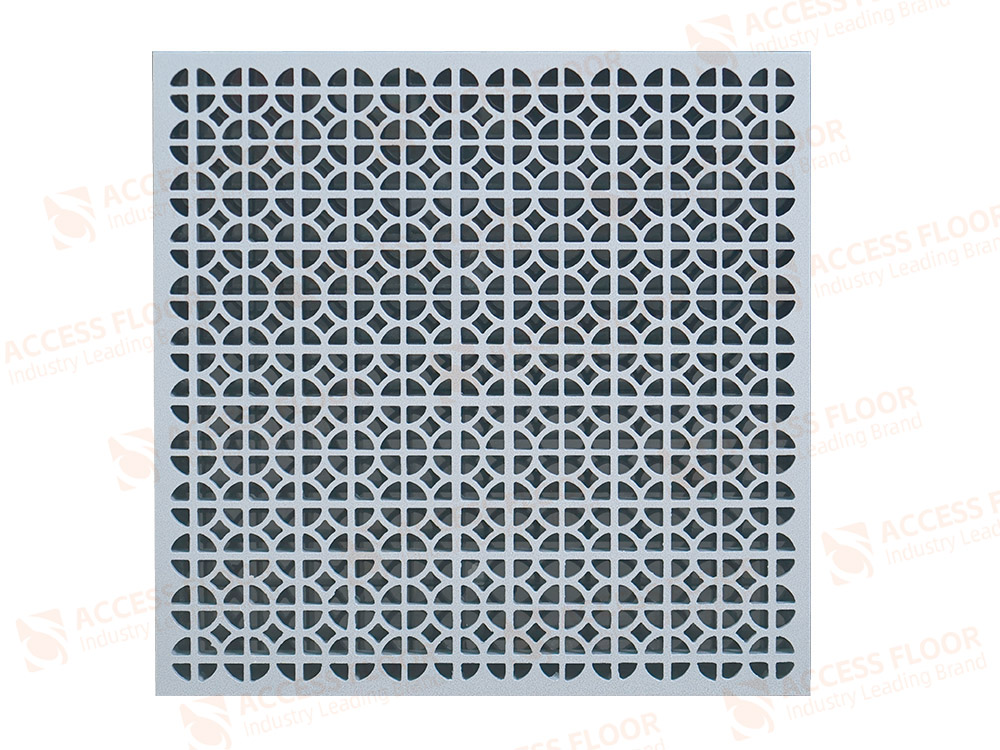

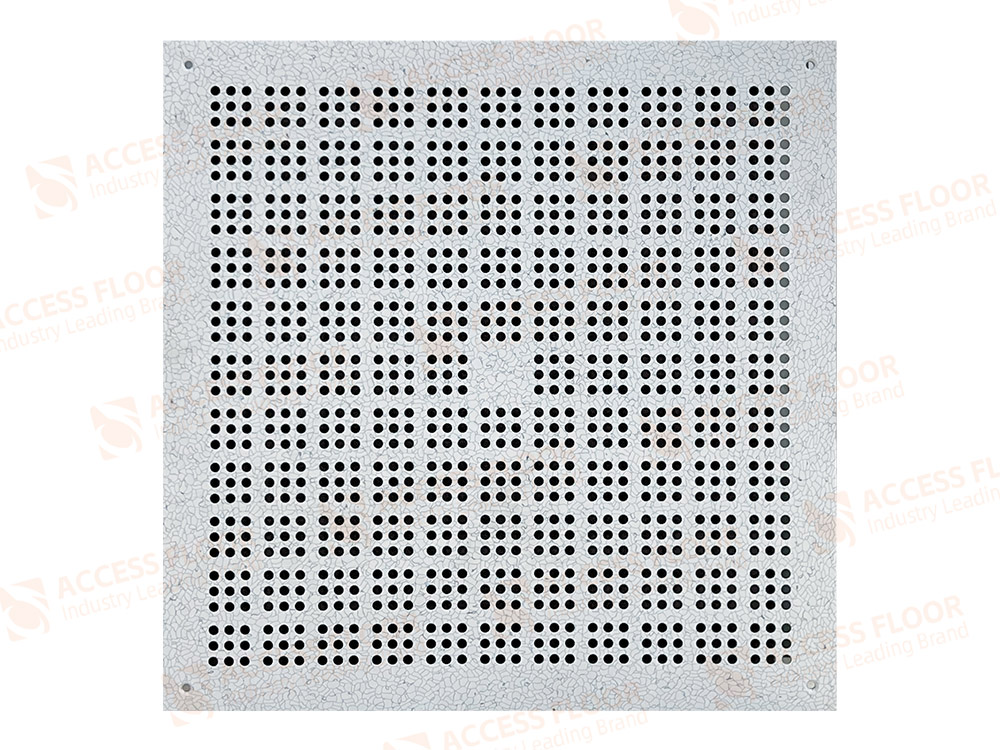

鋁合金通風活動地板
規格:600x600x50或55mm
| 型 號type | 規 格 mmsize | 通風孔徑 Фmmx個 /Pcs | 開孔率 Ventilation Rate | 集中荷載 CONCENTRATED LOAD(撓度 deflection=2mm) | 極限荷載(N)Ultimate Load | 均布荷載(N/m2)Uniform Load | 板面平整度Flatness | 相鄰邊垂直度Vertical | ||
| lb | N | Kg | ||||||||
| FS800-TF | 600*600 | Ф10x918 | 20% | ≥800 | ≥3560 | ≥360 | ≥10680 | ≥16000 | ≤0.6mm | ≤0.3mm |
| FS800-TF | 600*600 | Ф16x576 | 32% | |||||||
| FS800-TF | 600*600 | Ф(52x18)x200((腰孔型)) | 48% | |||||||
| FS800-TF | 600*600 | 格柵 | 70% | |||||||
| FS1000-TF | 600*600 | Ф22x400 | 42% | ≥1000 | ≥4450 | ≥450 | ≥13350 | ≥23000 | ||
